Product Model:HDSP0069S01
VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU VOXLINK UHD 1x4 HDMI Splitter EU

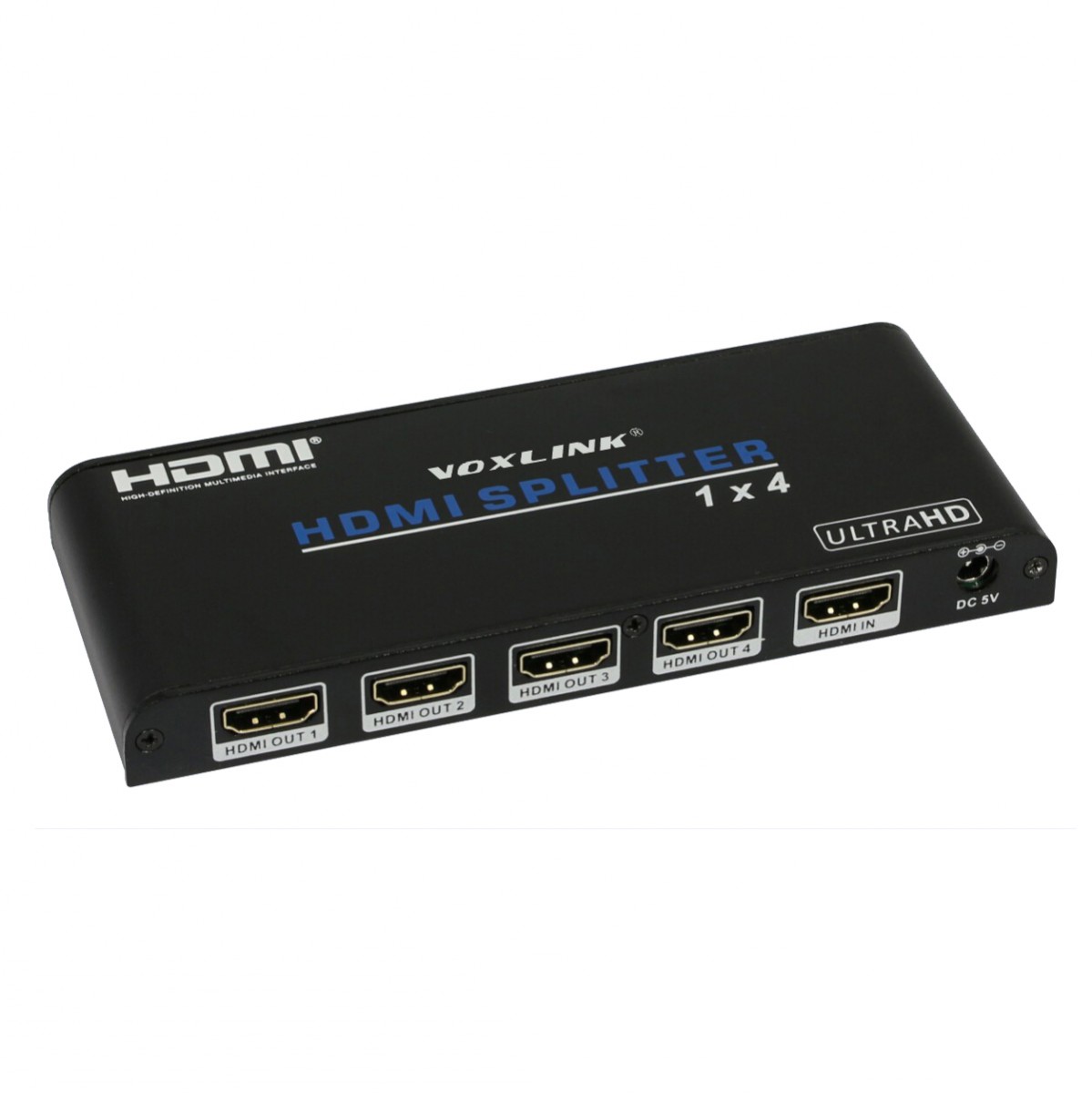

UHD 1x4 HDMI Splitter

Introduction
This 1 by 4 HDMI UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to four HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV420) resolution and is capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.

Package

UHD 1x4 HDMI Splitter---------------------------------1Pcs

5V/1A DC power adaptor-------------------------------1Pcs

User manual----------------------------------------------1pcs
Feature

Ø      Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

Ø      Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0;

Ø      Support 3D frame sequential video format up to 1080p@60;

Ø      Support high resolution VESA mode video format up to QSXGA@60Hz;

Ø      Support LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;

Ø      Support smart EDID control;

Specification

Video Bandwidth   300MHz/10.2 Gbps

Input Ports      1 x HDMI (Female type)

Output Ports  4 x HDMI (Female type)

Output Resolution   480i ~1080p50/60, 4Kx2K@24/30,

4k2k@60Hz with 12bit YCBCR 4:2:0,VGA~UXGA

ESD Protection       Human Body model:     ±8 kV (air-gap discharge)

    ±4 kV (contact discharge)

Power Supply        5 V/1A DC

Dimensions        64 mm (W) × 155mm (D) × 17 mm (H)

Weight       180 g

Chassis Material    Metal

Silkscreen Color     Black

Operating Temperature    0 °C~40 °C/ 32 °F~104 °F

Storage Temperature   −20 °C ~ 60 °C/−4 °F ~140 °F

Relative Humidity    20~90 % RH (non-condensing)

Power Consumption     2W

Connect and Operate

Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Splitter input.

Connect the HDMI outputs from the HDMI Splitter to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces. Use high-speed HDMI cables that are recommended for the distances that are required for each connection.

The Splitter is powered by an external power supply which is included. Connect power first to the source, then to the Splitter and then to each HD TV or projector.
