1.    Introduction

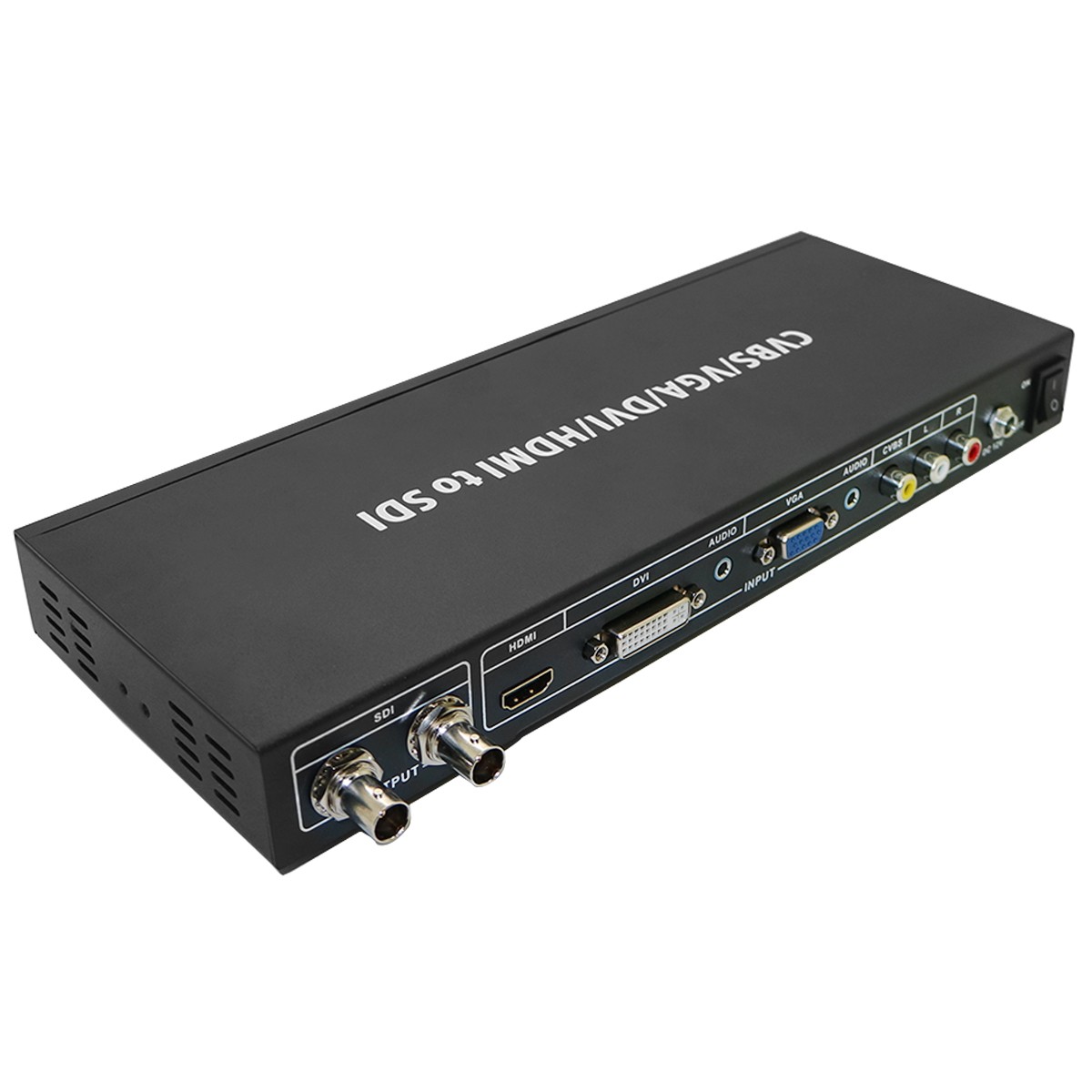

The ALL to SDI Scaler Converter allows you to upscale Composite,VGA,DVI,HDMI signals to high definition video of SDI formats (HD-SDI SMPTE 292M or 3G-SDI 424M/425M), then output to both ports at the same time.

2.    Features

Ø  Supports HDMI, DVI, VGA and Composite Video input signals;

Ø  Supports two SDI output simultaneously;

Ø  Supports SDI output distance up to 100 meters (3G-SDI), or 200 meters (HD-SDI);

Ø  Scales any input signal to the HD-SDI or 3G-SDI output signals;

Ø  Supports HDMI input timings: VGA@60 ~ SXGA@60 & 480i ~1080p@60 Hz;

Ø  Supports VGA/DVI input timings: VGA@60 ~1920×1080@60 Hz;

Ø  Supports Composite Video input timings NTSC, PAL,SECAM;

Ø  Supports Black screen signal output;
